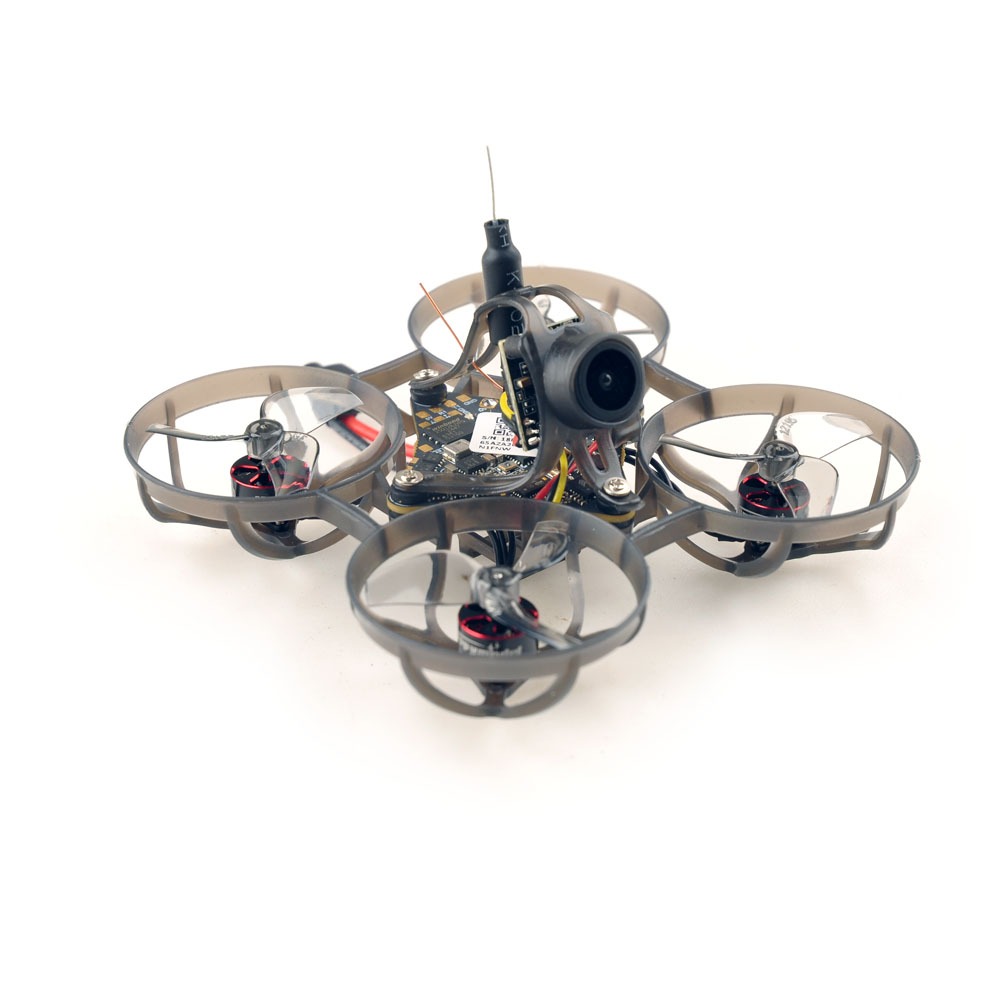

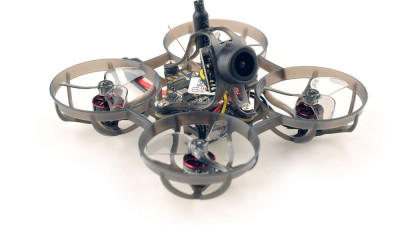

Happymodel Mobula 6 2024 V3 - 1S ELRS

Mobula 6 2024 V3 is a Tinywhoop of classic size 65mm. The Mobula is suitable primarily for indoor flying, but you will also have fun with it in the garden or on a playground. The Mobula 6 2024 aims for the lowest possible weight and is a lightweight variant of the classic Mobula 6. Without the battery, it weighs only 17.6 grams, making flying with the drone completely safe. Safety is also enhanced by covered propellers. The brushless brushless motors ensure a long lifespan for the Tinywhoop.

Power is provided by motors of size  SE0702 28000Kv combined with Gemfan 1208-3 propellers. The motors have a shaft diameter of 1mm. Video is provided by the Happymodel Nano5 analog camera with a resolution of 1200TVL in combination with an OpenVTX video transmitter with an output of up to 400mW. The third version uses the new AIO board CrazyG473.

The flight controller is equipped with a G473 processor, an integrated UART ELRS receiver operating at 2.4GHz, 16MB memory for the blackbox, 5A Bluejay ESCs, and the aforementioned video transmitter. The antenna is connected to the video transmitter via a u.FL connector and can be easily replaced with another. The flight controller also includes a current and voltage sensor. The board has UART ports available, allowing for connection of an external RC receiver.

1S Lipo/LiHV batteries with a capacity of 300-380mAh and an A30 connector are recommended.
