Happymodel ELRS 2.4G EP1 Dual TCXO

In Stock
€ 26,39

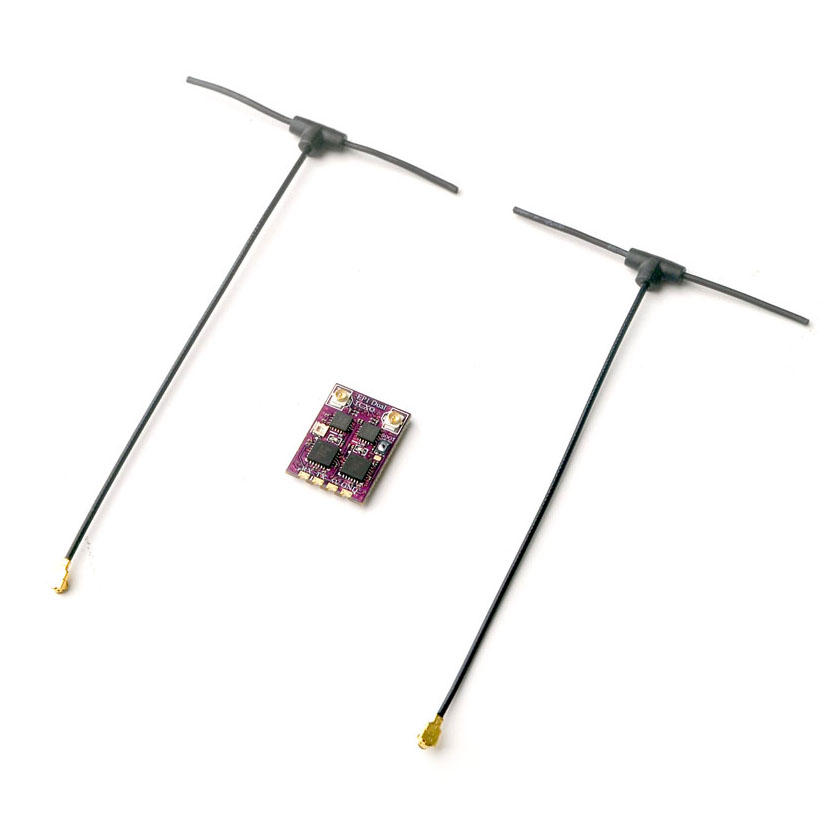

Happymodel ELRS 2.4G EP1 Dual TCXO is a receiver for 2.4GHz ELRS. ExpressLRS is an advanced open source RC system with long range, low latency, high refresh rate and lots of useful features. The Happymodel EP1 receiver has dimensions of 19x14mm and two u.FL connectors for connecting the antenna. The EP1 Dual diversity receiver has two input antennas, which should ideally be rotated 90° to each other. Thanks to this, the receiver is able to eliminate attenuation caused by poorly oriented polarization and thus offers even more reliable RC transmission. The receiver is thus especially suitable for freestyle and long-range copters. The TCXO version contains a "temperature compensated crystal oscillator". This ensures a stable oscillator frequency and stable RC transmission even with larger temperature fluctuations.

Key Features

  • Input voltage: 5V
  • Size: 19x14mm
  • Weight: 1g (without antenna)
  • Connector: IPEX1 (u.FL)
  • Frequency range: ISM 2.4GHz
  • MCU: ESP32 PICO D4
  • RF module: dual SX1280(SX1281)
  • Output protocol: CRSF
  • Telemetry power: >19dbm

Package Includes

  • 1x Receiver
  • 2x Antenna
