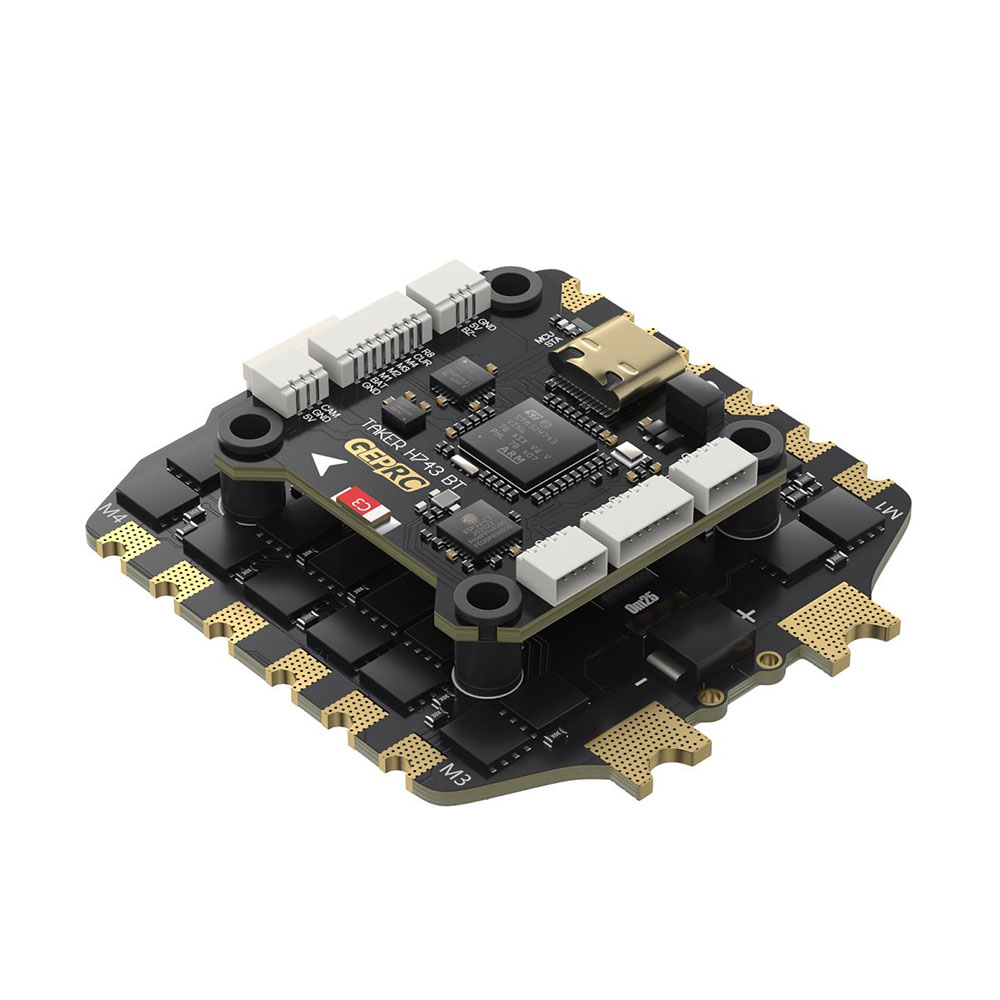

GEPRC Taker H743 BT + 80A BLS

GEPRC Taker H743 BT + 80A is a combination of a flight controller with a powerful ESC mostly suitable for large 10-13" long-range drones powered by 3-6S LiPo batteries. The stack is compatible with Betaflight, iNav and Ardupilot firmware.

The flight controller has a rich feature set. It is based on the microprocessor STM32H743 combined with IMU units MPU6000 and ICM42688-P. The flight controller also features a barometer for altitude measurement, 512MB memory for blackbox, and a Bluetooth module for wireless setup. The board has 8 outputs for motors and servos. It features connectors for easy peripheral connections without soldering. For fans of soldered connections, there are solder pads available on the underside of the board. To power the GPS module, RC receiver, camera, and video transmitter, the board has 5V/3A and 12V/2.5A BEC.

The stack is complemented with the Taker H80_BLS 80A 4in1 ESC. The ESC has a doubled number of MOSFETs, allowing it to handle high currents up to 80A per motor. The ESC is equipped with both a TVS diode and a current sensor. The Taker H80 has larger dimensions of approximately 56x61mm, so it is necessary to ensure that there is sufficient space for it in the frame. The ESCs are compatible with BlHeli_S and Bluejay firmware.
