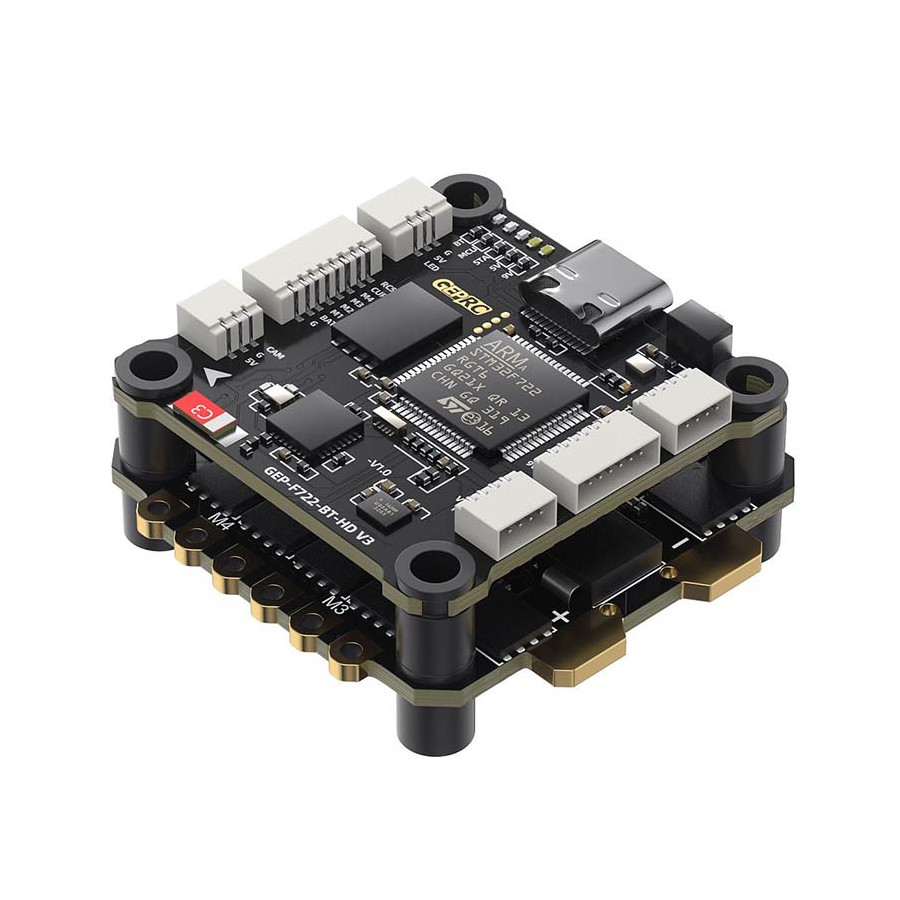

GEPRC Taker F722 + 50A BL32 Stack is a combination of a flight controller and ESC designed for high-performance 5" freestyle drones. The stack supports 3–6S LiPo battery input. The flight controller is equipped with an F722 processor and ICM42688-P gyro. It also includes 512MB blackbox memory, an integrated barometer, LC filter, 5V and 9V BEC, and a Bluetooth module for wireless configuration. The board features a wide range of connectors to allow solder-free setup, while solder pads are also available.
The ESCs support current up to 50A. They run BlHeli_32 firmware and include a current sensor.
Key Features
- Input voltage: 3-6S Lipo
- MCU: STM32F722
- IMU: ICM42688-P
- Blackbox: 512MB
- Bluetooth module (UART 4)
- Number of UARTs: 5
- BEC: 5V/3A, 9V/2.5A
- FC size: 36.9x36.9mm
- ESC size: 42.5x42.1mm
- Mounting holes: 30.5x30.5mm M3
- Maximum current: 50A
- Current sensor
- ESC firmware: BlHeli_32 Test
Package Includes
- 1x FC
- 1x ESC
- 1x Softmount Kit
- 1x Cable Kit
- 1x Capacitor
- 1x XT60 with cable
