GEPRC MOZ7 - 6S ELRS

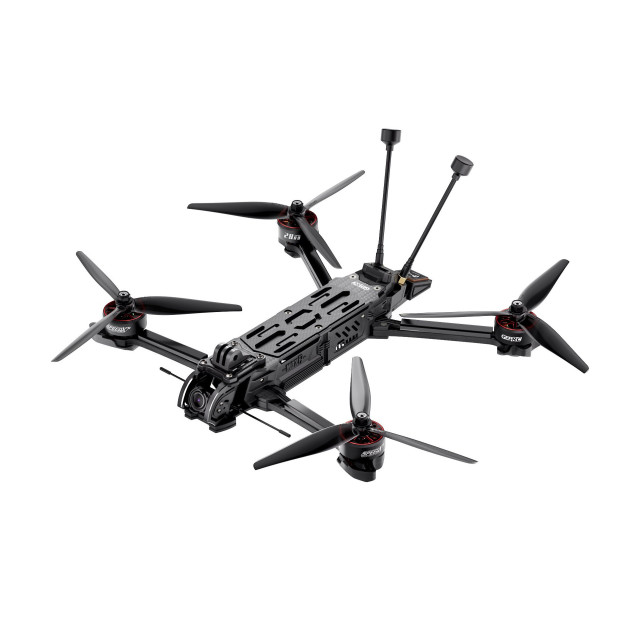

GEPRC MOZ7 is a high quality 7.5" drone for longer distance flights. The video transmission is handled by a GEPRC RAD analog video transmitter with up to 1.6W. The frame is in Deadcat design. Deadcat frames have motors moved further back behind the camera level. The edges of the propellers, which are distracting in FPV images and even more so in HD footage, are not visible in the image. The drone already has a GPS module at the base of the M10, which enables automatic return to the launch site and provides the pilot with important information about the drone's speed and the distance and direction to the launch site. Also pleasing is the fixed XT60 connector that holds the drone firmly in place. This way, the battery cables have no chance of getting tangled in the propellers. The frame includes plastic sidewalls that protect the stack and sensitive electronics from dirt. The drone also includes an antispark filter. A small component that eliminates the spark in the connector when the battery is plugged in. This causes less wear on the connector and extends its life.

The sensitive camera is protected in a durable aluminum alloy cage 7075. To eliminate vibration and minimize damage from drops, the camera is mounted in TPU inserts in the aluminum cage. The drone is powered by SPEEDX2 2809 1280Kv motors, which combined with a 6S battery provide more than enough power. The frame can accommodate up to 7.5" propellers, which provide more thrust compared to the conventional 7". Powerful SPAN G50A ESCs are used to drive the motors with BlHeli_32 firmware that supports telemetry, bidirectional dshot and other advanced features. Flight control is provided by a SPAN F722 HD V2 controller with integrated bluetooth. This will make it easier to set up the drone, especially in the field when there is no need to connect a USB cable. Everything can be conveniently set up wirelessly via the Speedybee app on your phone. The recommended battery is the 6S 3300mAh Lipo or the 6S 4000-8000mAh Liion.

The copter is installed with ELRS receiver, but it is not a problem to replace it with another one.
