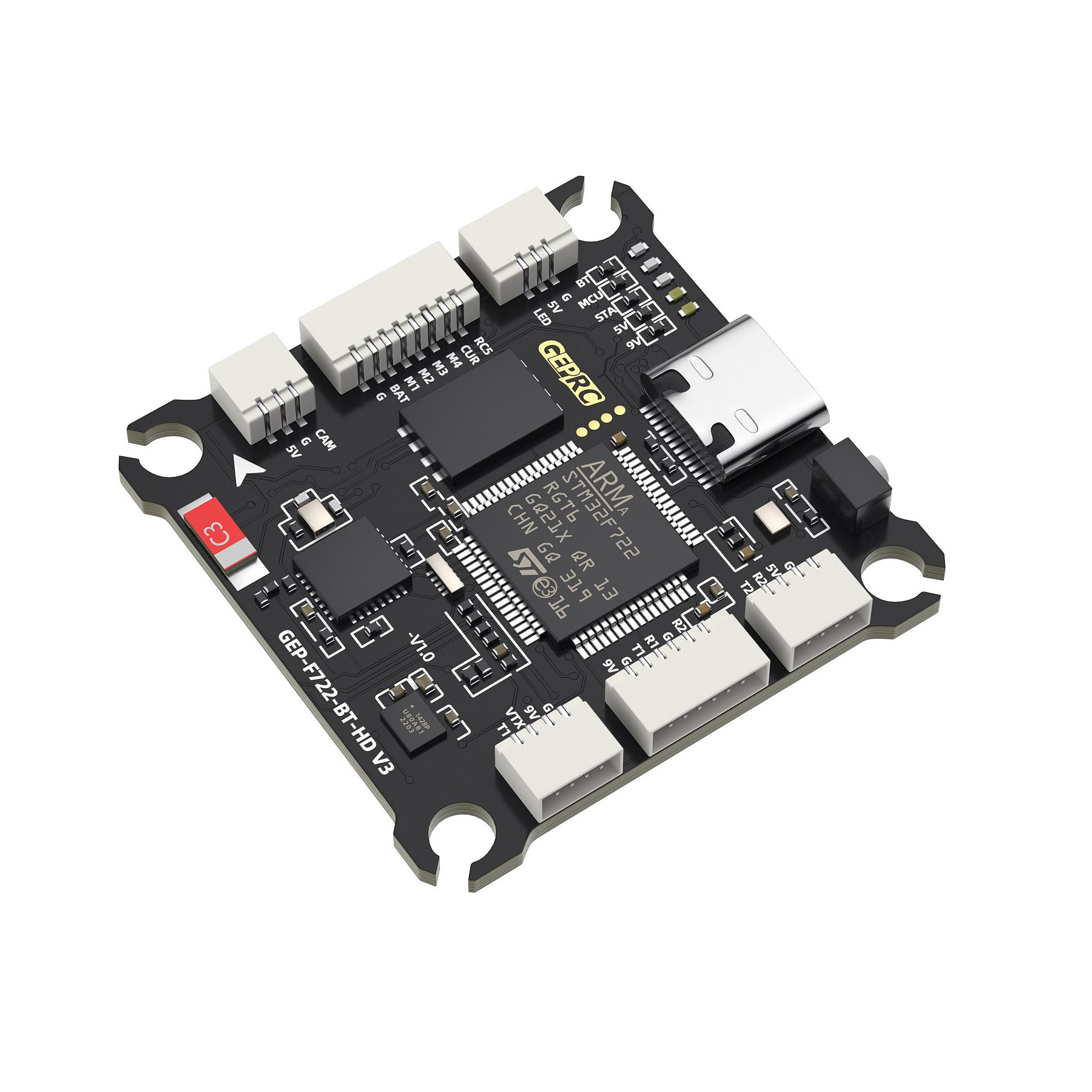

GEPRC F722 BT HD V3 is a flight controller suitable for freestyle 5" drones and larger long-range drones powered by 3–6S LiPo batteries. The core of the board is the STM32F722 processor supplemented by the ICM42688P gyroscope. The board features a Bluetooth module allowing for wireless configuration. It also offers a large 512MB memory for Blackbox, a barometer for altitude measurement, and 5V/3A and 9V/2.5A BEC for powering peripherals.
The flight controller also includes an integrated LC filter for clean power to the video transmitter and a USB-C connector for reliable connection to a PC via a cable. For connecting peripherals, there are 5 UARTs available, with UART4 dedicated to the Bluetooth module. The board supports analog and digital systems. It has connectors for easy connection of other components without soldering. For soldering enthusiasts, pads are available on the underside of the board.
Key Features
- Power: 3–6S LiPo
- Gyro: ICM42688-P
- Processor: STM32F722
- Number of UARTs: 5 (UART4 dedicated for Bluetooth)
- Memory for Blackbox: 512 MB
- Barometer: yes
- OSD: AT7456E
- Motor outputs: 8
- BEC: 5V/3A, 9V/2.5A
- Bluetooth: yes
- Power filtration: integrated LC filter
- USB port: USB-C
- Betaflight target: GEPRCF722_BT_HD_V3
- Size: 36.9x36.9mm
- Mounting holes: 30.5x30.5mm M4 (M3 with soft mounts)
- Weight: 8.2g
Package Includes
- 1x Flight controller
- 1x Set of connecting cables
- 1x Set of soft mounts
- 4x Nylon nuts
