In Stock
€ 102,09

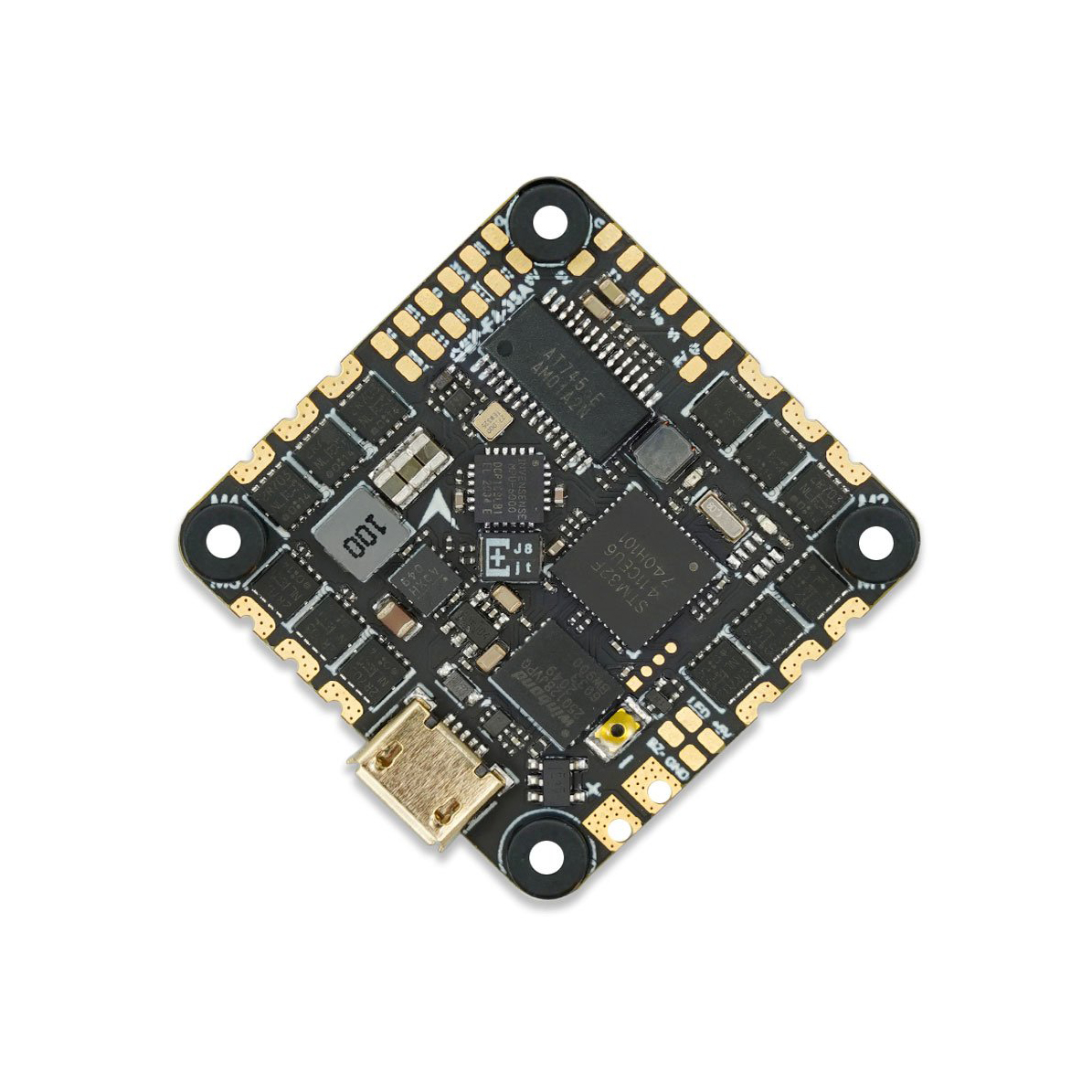

The GEPRC F411 35A AIO is an all-in-one board that combines a FC with regulators. The board is especially suitable for Toothpicks, Cinewhoops and small freestyle or long-range copters. The basis of the control unit is the F411 processor and BMI270 gyro. The board has 16MB memory for blackbox, integrated LC filter, OSD and micro USB connector. The motors are powered by 35A regulators with BlHeli_S firmware supporting 2-6S Lipo batteries.

Wiring diagram

Key Features

  • Model: GEP-F411-35A AIO
  • Procesor: STM32F411
  • IMU: BMI270
  • Betaflight Target: GEPRC_F411_AIO
  • Number of UARTs: 2
  • USB: Micro
  • ESC MCU: 8BB21F16G
  • Max current: 35A
  • Input voltage: 2-6S
  • Blackbox: 16MB
  • Size: 32x32mm
  • Mounting holes: 25,5x25,5mm M2
  • Weight: 8,8g

Package Includes

  • 1x AIO FC
  • 1x XT30 with 7cm 18AWG cable
  • 1x 220uF 35V Capacitor
  • 8x Softmounts
