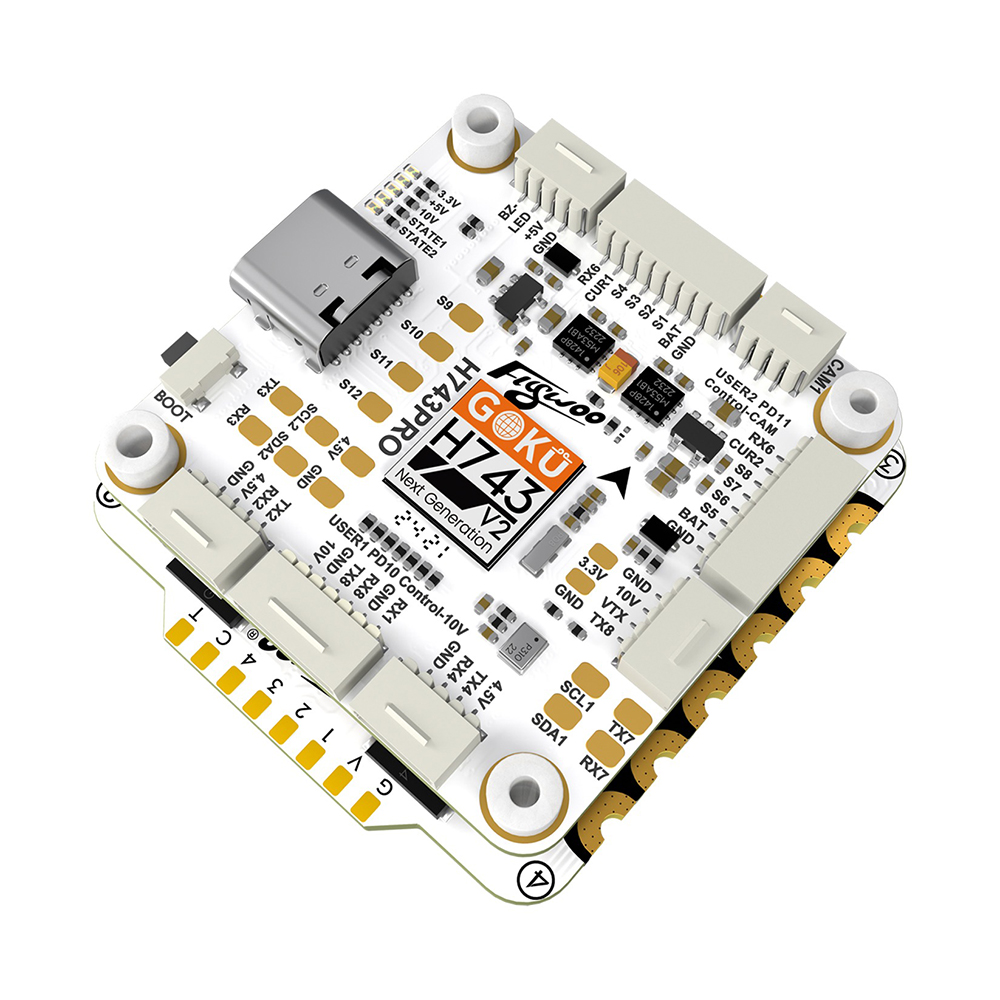

Flywoo GOKU H743 Pro + 55A AM32 is a combination of a flight controller with ESCs suitable for 5" FPV drones and 7" long-range drones powered by 3-6S LiPo batteries.

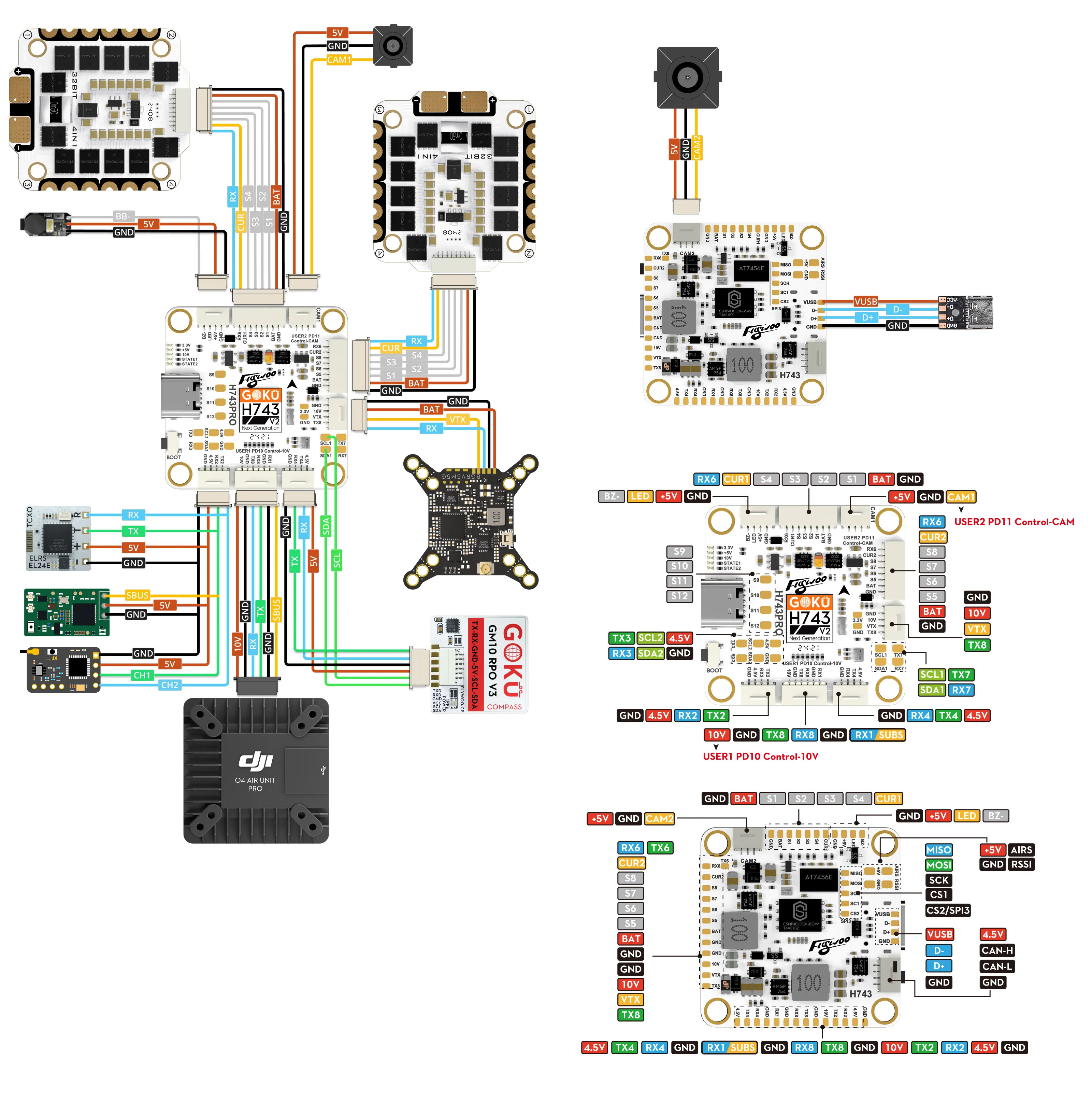

The controller features a pair of independent ICM42688P gyroscopes for better reliability. It uses a powerful H743 processor. The controller supports Betaflight, iNav, and Ardupilot firmware. It has 12 PWM outputs for motors and servos, 5V/3A BEC, and a switchable 10V/3A BEC for powering the video transmitter. The controller has two camera inputs, which can be switched in-flight. It also includes large memory of 512MB for blackbox and barometer for altitude measurement. For peripheral connections, it has seven UARTs and two I2C buses. The board is equipped with connectors for easy connection of other components without soldering. Solder pads are available on the underside of the board.
The stack also includes a 4in1 ESC GOKU G55M, which can handle up to 55A per channel. The ESC uses modern AM32 firmware and includes a current sensor.
Key Features
- Input voltage: 10.5–25.2 V (3–6S LiPo)
- Processor (MCU): STM32H743VIH6
- Gyro: 2× ICM42688P
- Barometer: DPS310 / SPL06
- Dual input for analog cameras
- BEC: 5V/3A, 10V/3A - switchable
- OSD chip: AT7456E
- UART ports: 8
- I2C buses: 2
- Firmware: Betaflight / INAV / ArduPilot – Flywoo H743PRO
- Mounting holes: 30×30mm (M3)
- Blackbox: 512 MB
- PWM outputs: 12
- Dimensions: 36.5 × 36.5 × 8.45 mm (including connectors)
- Weight: 9.9 g
- GOKU G55M AM32 4in1 ESC
- Continuous current: 55 A
- Firmware: AM32 (AT32DEVF421)
- Supported PWM frequencies: 24kHz –96kHz
- Weight: 15 g
Package Includes
- 1x Flight controller
- 1x ESC
- 1× FC–ESC connector cable
- 1× DJI O4 / O4P connector cable
- 1× Buzzer connection cable
- 1× Receiver connection cable
- 1× GPS connection cable
- 2× Camera connection cables
- 1× Analog VTX connection cable
- 1× Power cable with XT60 connector
- 9× M3 softmount balls
- 5× M3 softmounts
- 1× Capacitor
- 5× Nylon standoffs
- 5× Anti-slip nuts
