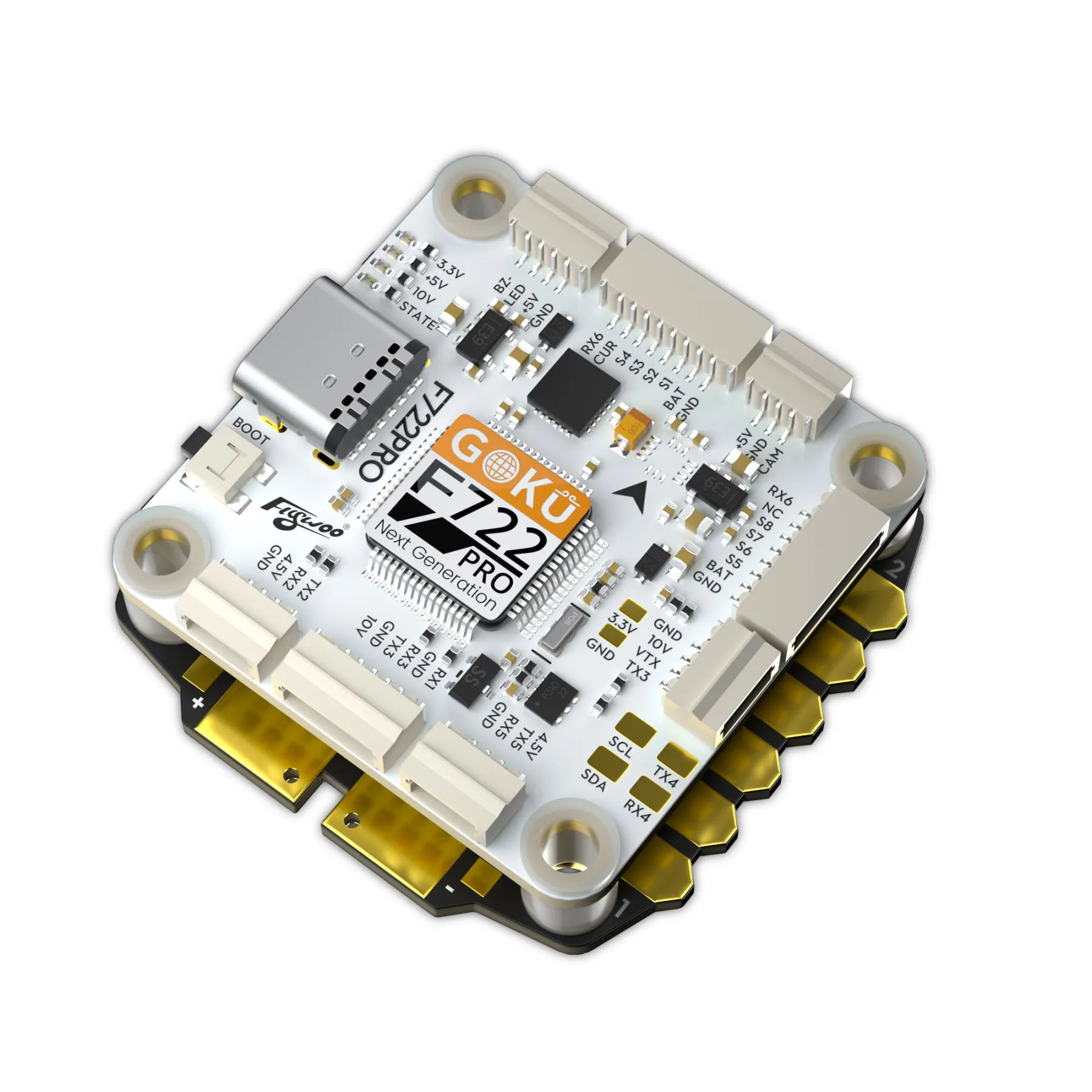

Flywoo GOKU F7 Pro V2 + 55A is a high-performance stack combining a flight controller and an ESC for 5–7" freestyle and long-range drones. The flight controller is powered by an F722 processor paired with an ICM42688 gyro. It comes equipped with connectors for solder-free installation, while solder pads are also available on the bottom side of the board. Additional features include 16MB of Blackbox memory, 5V and 10V BECs, 8 motor outputs, and a barometer for altitude measurement. The 10V BEC is switchable via USER1 mode, which is particularly useful when used with a GPS module, allowing you to switch off the video transmitter while waiting for satellites.
The flight controller is paired with a 55A ESC running the modern 32-bit AM32 firmware, featuring an integrated current sensor.
Key Features
- Input power: 2-6S
- MCU: STM32F722
- Gyro: ICM42688
- OSD: AT7456E
- Barometer: DP310 / SPL06
- Blackbox memory: 16MB
- Number of UARTs: 6
- BEC: 10V/3A, 5V/3A
- Mounting holes: 30.5x30.5mm M3
- ESC Current: 55A
- Current Sensor: Yes
- ESC Firmware: AM32
- FC Firmware: Betaflight/iNav
Package Includes
- 1x Flight controller
- 1x ESC
- 1x Cable set
- 1x Softmount set
- 1x Capacitor
- 1x XT60 with cable
