Flywoo GOKU F405 1S 5A AIO V2.0 (FC+ESC+RX) ELRS

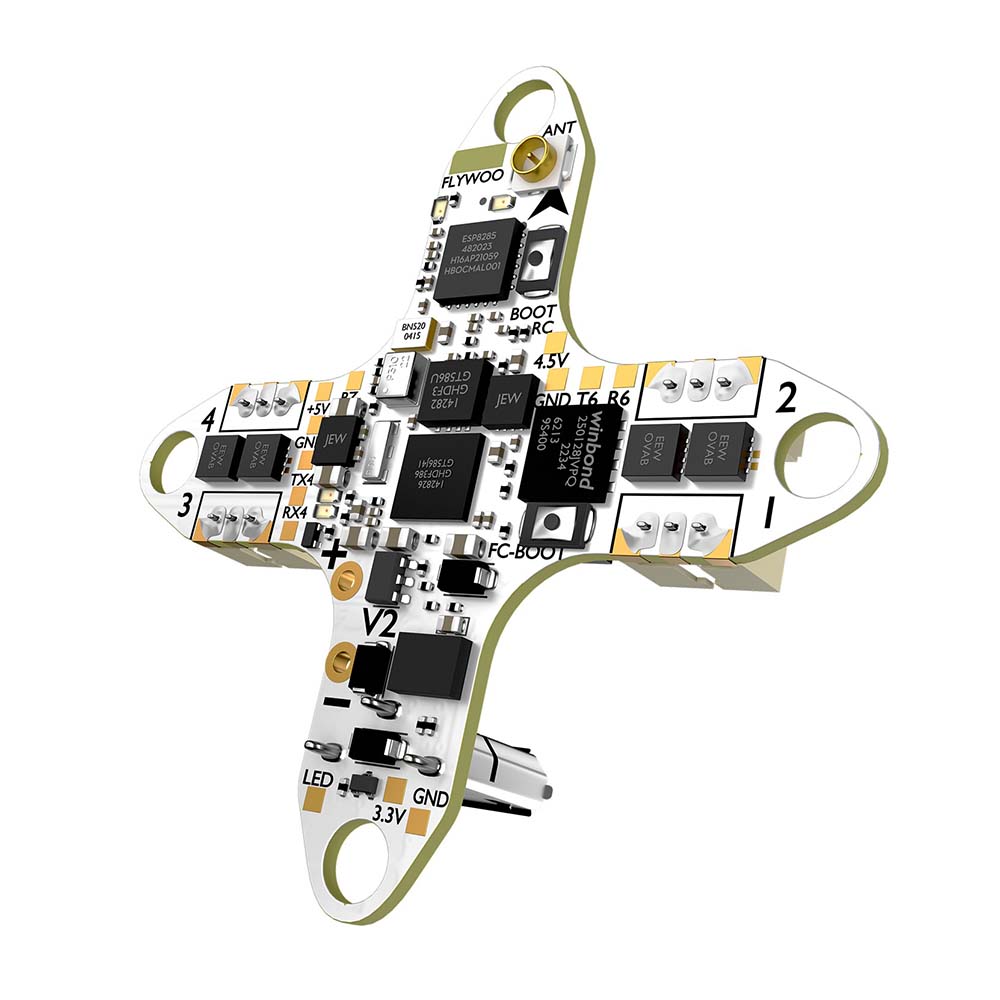

Flywoo GOKU F405 HD 1S 5A AIO V2.0 is a lightweight AIO board for 1S Tinywhoops with digital video transmission. The board combines a flight controller, ESCs, and an ELRS receiver. The unit weighs only 2.6 g and its cross shape is compatible with all popular 1S frames. Thanks to the built-in 5V BEC module, it can reliably power the digital transmission of DJI O4, HDZero, or Walksnail Avatar.
The flight controller uses an STM32F405 microprocessor combined with a gyroscope ICM42688P. It also features 8MB memory for blackbox and a barometer for altitude measurement. The ESCs use Bluejay firmware, handle 5A current, and are suitable for motors 0702–0803. Connectors are available for easy motor connections.
The board has an integrated ELRS 2.4GHz receiver with a TCXO oscillator. An external antenna is connected via an IPEX1 connector.
The board is powered through an A30 connector. It is designed for use with digital video transmitters and does not have a chip for analog OSD.
Key Features
- Input voltage: 2.6-4.35V (1S HV)
- MCU: STM32F405BGA
- IMU: ICM42688P
- Barometer: SPL06
- Memory for blackbox: 8MB
- Analog OSD: No
- BEC: 5V/3A StepUp
- RC receiver: integrated Flywoo TCXO EL24E 2400 RX 3.0.0
- Antenna connector for ELRS: IPEX1
- BF Target: FLYWOOF405S_AIO
- Mounting holes: 25.5x25.5mm
- ESC current: 5A
- Motor connector: JST1.25
- ESC firmware: O_H_5_48KHz_V0.19 Bluejay
- Battery connector: A30
- Size: 30.5x30.5mm
- Weight: 2.6g
Package Includes
- 1x AIO board
- 1x 40mm 2.4GHz ELRS antenna
- 1x Set of softmounts
- 1x A30 connector with cable
