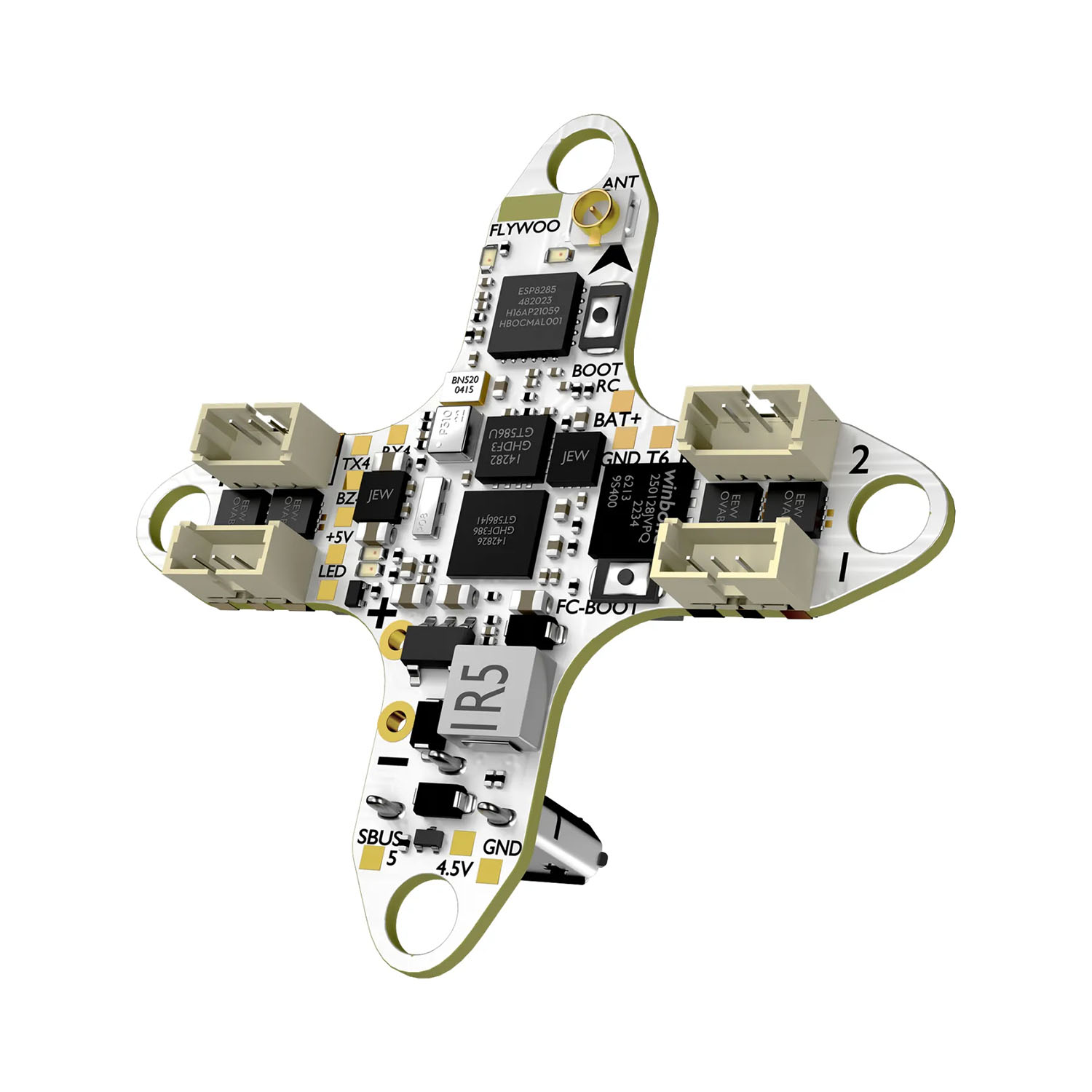

The Flywoo GOKU F405 HD is a compact AIO flight controller designed for the smallest 1S Tinywhoops with digital video transmission systems such as DJI O4 or Walksnail Avatar. It integrates a flight controller with an F405 microprocessor, ICM42688P gyro, and SPL06 barometer for altitude measurement, 5A ESCs running Bluejay firmware, and a built-in 2.4GHz ELRS receiver. The board also features 8MB of blackbox memory.

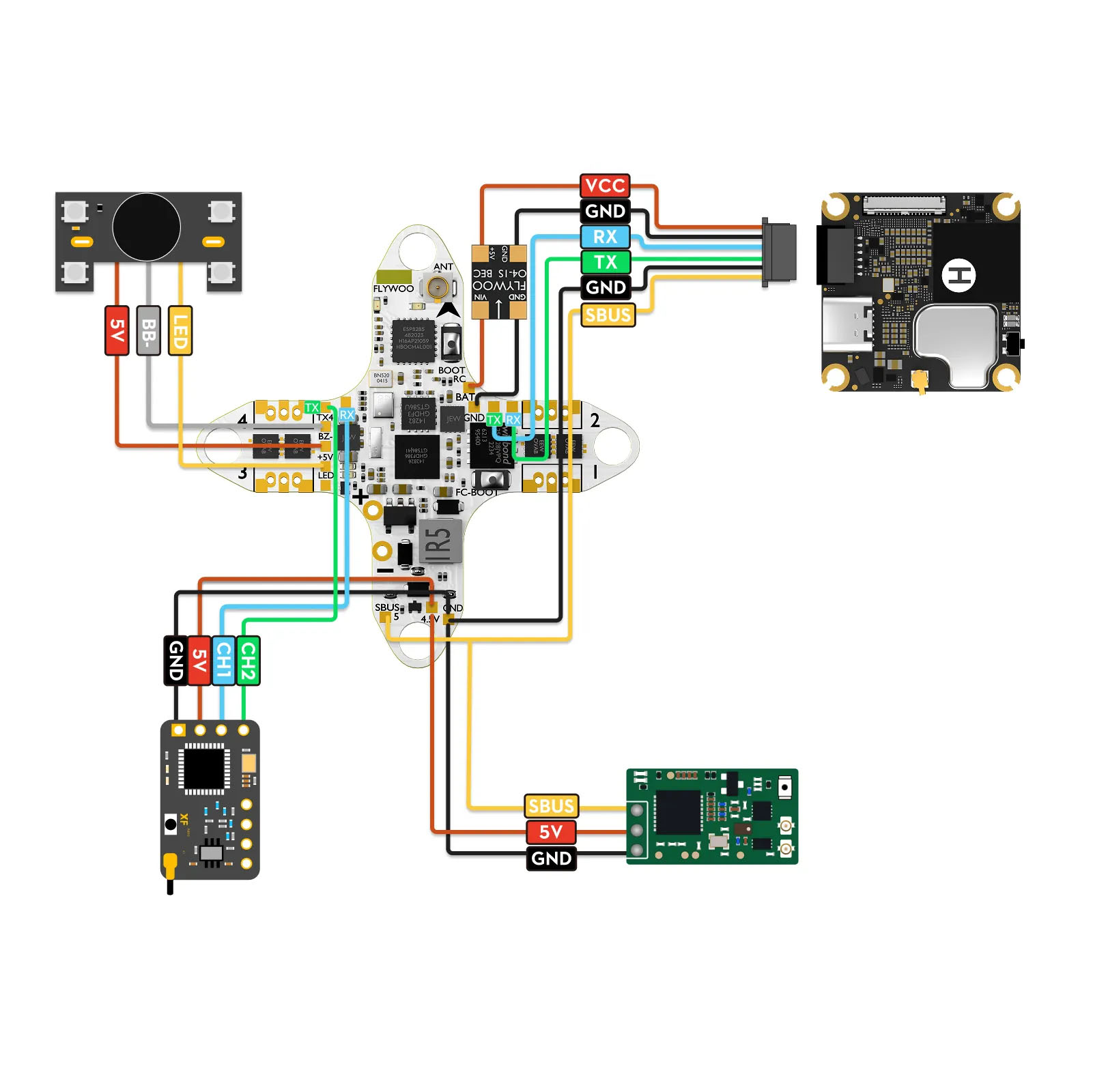

For easy motor connection, the board is equipped with JST1.25 connectors. When used with the DJI O4 unit, a Flywoo 5V step-up BEC is required. In this configuration, the board can operate down to a minimum voltage of 2.6V.
Key Features
- MCU: STM32F405BGA
- MPU: ICM42688P
- Input voltage: 1S
- Barometer: SPL06
- BEC: 5V/2A
- Blackbox memory: 8M
- Receiver: 2.4GHz ELRS UART3
- Current: 5A (8A short-term)
- ESC firmware: O_H_5_48KHz_V0.19(Bluejay)
- Mounting holes: 25.5X25.5mm M2
- Size: 30.5x30.5mm
- Weight: 3.3g (including connectors)
- Battery connector: A30
Package Includes
- 1x AIO board
- 1x 5V BEC module
- 1x Minimortal 2.4GHz antenna
- 1x Softmount kit
- 1x Cable kit
- 1x A30 connector with cable
