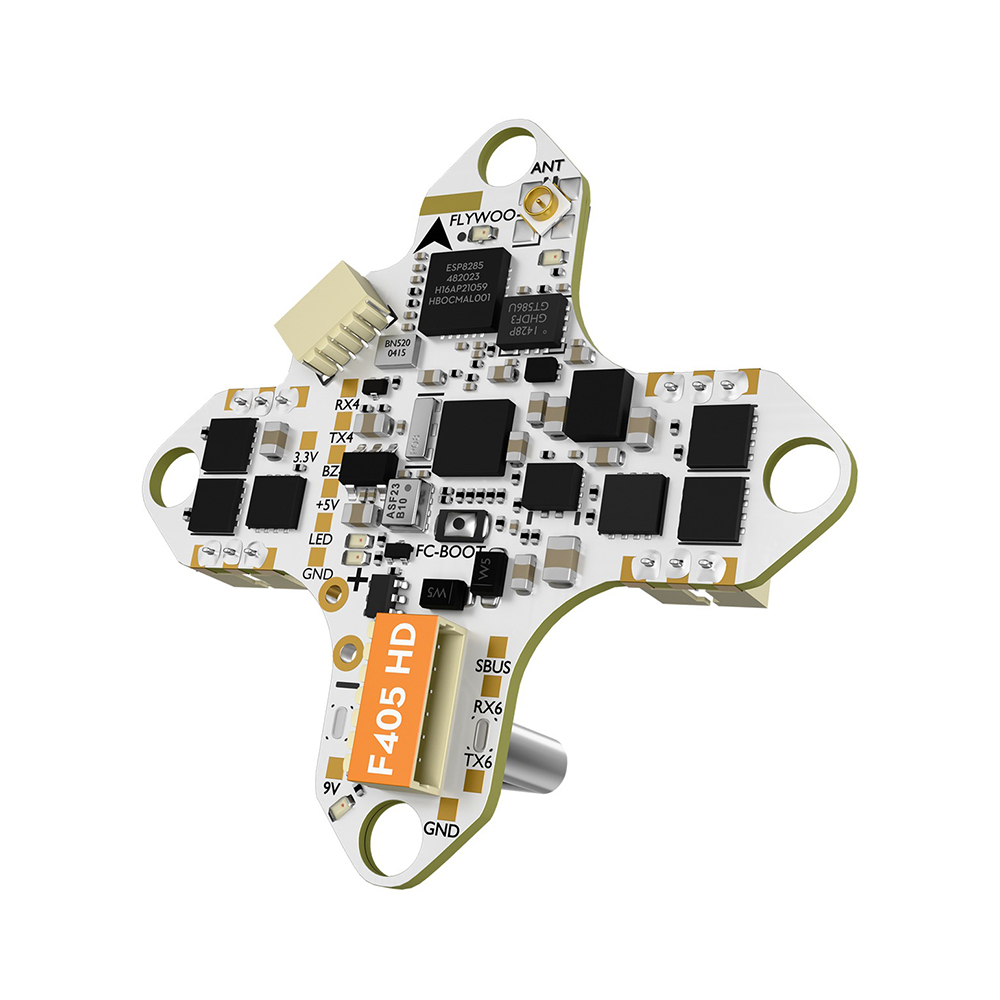

Flywoo GOKU F405 AIO is a board combining flight controller, regulators, and ELRS receiver. The board is designed for Tinywhoops and small toothpicks powered by 1S LiPo batteries and equipped with digital video transmission. It has an integrated step-up BEC for 5V and 9V for seamless powering of DJI O4, O4 Pro, Walksnail, and HDZero video transmitters, which connect via a standard connector. The unit is not equipped with an OSD chip for analog video.
The flight controller is built on an STM32F405 BGA processor, uses an ICM42688P gyro, and a SPL06 barometer for altitude measurement. The integrated regulators use Bluejay firmware. They can handle currents up to 12A and are suitable for motors up to size 1103. For easy motor connection, the board is equipped with connectors. The integrated ELRS receiver connects via UART. An external antenna connects via an IPEX1 connector.
The board supports both Betaflight and iNav firmware. It is not equipped with blackbox memory but allows the connection of an external UART logger.
Key Features
- Power supply: 1S Lipo/LiHV
- Power connector: A30
- MCU: STM32F405GA
- Gyro: ICM42688P
- Barometer: SPL06
- Blackbox memory: No (external UART logger can be connected)
- Analog OSD: No
- BEC: 5V/3A, 9V/2A Step-up
- ESC: 12A Bluejay O_H_5_48KHz_V0.19
- RC receiver: Integrated UART ELRS 2.4G
- Betaflight target: FLYWOOF405S_AIO
- iNav target: FLYWOOF405HD
- Motor connectors: JST1.25-3pin
- Mounting holes: 25.5mm x 25.5mm
- Size: 30.5x30.5x10mm
- Weight: 3.4g
Package Includes
- 1x GOKU F405 HD 1S 12A AIO
- 1x Flywoo ELRS 2.4g antenna 40mm
- 5x M2*6.6 Softmount
- 1x Cable for connecting to GPS or Flywoo blackbox
- 1x A30 Power cable
- 1 x Cable for connecting to DJI O4 \ O4 Pro
