FlyfishRC Volador VD6

€ 64,69
81.70 -20% OFF!

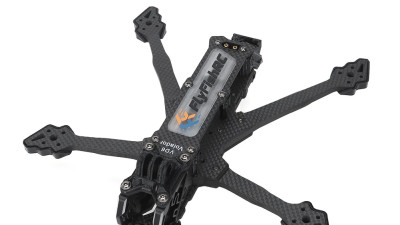

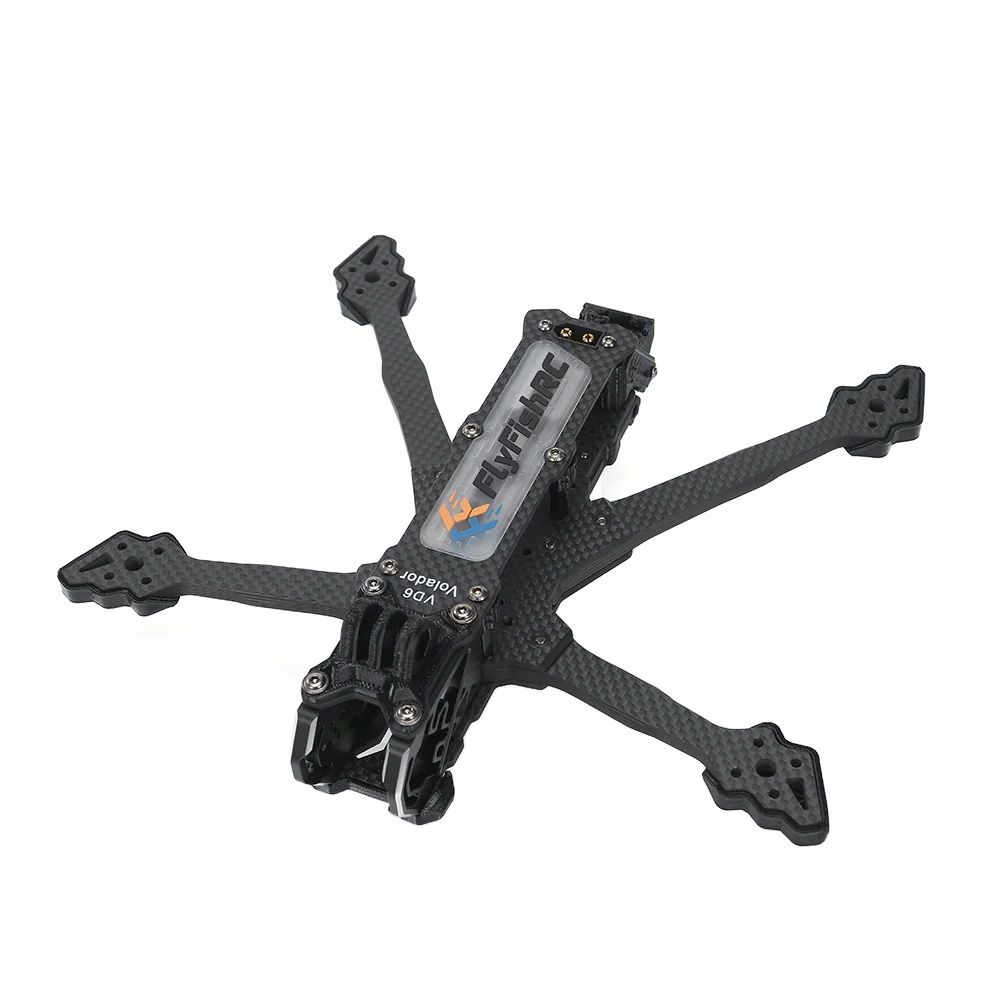

Flyfish Volador VD6 is a quality frame designed for freestyle and cinematic flying. The frame is in a VD6 - deadcat configuration with 6" propellers. Thanks to the deadcat layout, the front arms are moved more to the side and back, so the propellers are not visible in the HD recording or in the FPV video. The 6" propellers will add power to the copter and especially with the larger 2208/2506 motors, the drone will be very agile even with a heavier HD camera and a larger battery.

The frame is carved from top-quality T700 carbon, which has better strength than commonly used carbon (T300). In addition, the arms are carved from 6mm thick carbon. This increases not only the resistance against falling, but also the transmission of vibrations from the motors to the control unit due to the high strength. The frame is very well made. The edges of the frame are bevelled, so there is no risk of the cable being cut by a sharp edge. The screws are made of durable grade 12.9 steel. The screws are pre-applied with Loctite, so the screws stay tight and won't loosen due to vibration. The camera is protected by a metal mount, made of durable 7075 aluminum alloy, which is commonly used on drones to make better motors. The camera has an adjustable angle of 15-60°. The frame has a number of 3D prints including a shoulder protector, a GoPro camera holder or a GPS. On the top plate, the frame has a silicone pad that increases the friction between the frame and the battery and minimizes the chance of the battery slipping out in the event of a fall. You will also be pleased with the way the XT60 connector is attached. It is firmly fixed in the upper plate. The battery cables do not have a chance to get tangled between the propellers, where they could be cut.

The frame has M3 mounting holes for 20x20mm and 30.5x30.5mm stacks. There is a place for a second stack at the back of the frame. The mounting holes are 20x20mm and 25.5x25.5mm M2. Caddx Vista, Walksnail Avatar or DJI O3 can also be placed in the frame.

Key Features

  • High strength carbon T700
  • Cover of camera from alloy 7075
  • Fixed XT60
  • Steel 12.9 screws with Loctite
  • Arms thick 6mm
  • Max size of propellers: 5,1"
  • Camera size: 19/20mm
  • Diagonal size 225mm
  • Weight: 205g (with every 3D prints)
  • Mounting holes for Stack: 20x20/30,5x30,5mm M3
  • Mounting holes for: 20x20/25,5x25,5mm M2
  • Height of stack: 22mm
  • Angle of camera: 15-60°

Package Includes

  • 1x Frame
  • 1x XT60 connector
  • 1x Anti-slip mat
  • 2x Battery strap
  • 1x Set of 3D prints
  • 1x Set of screws
