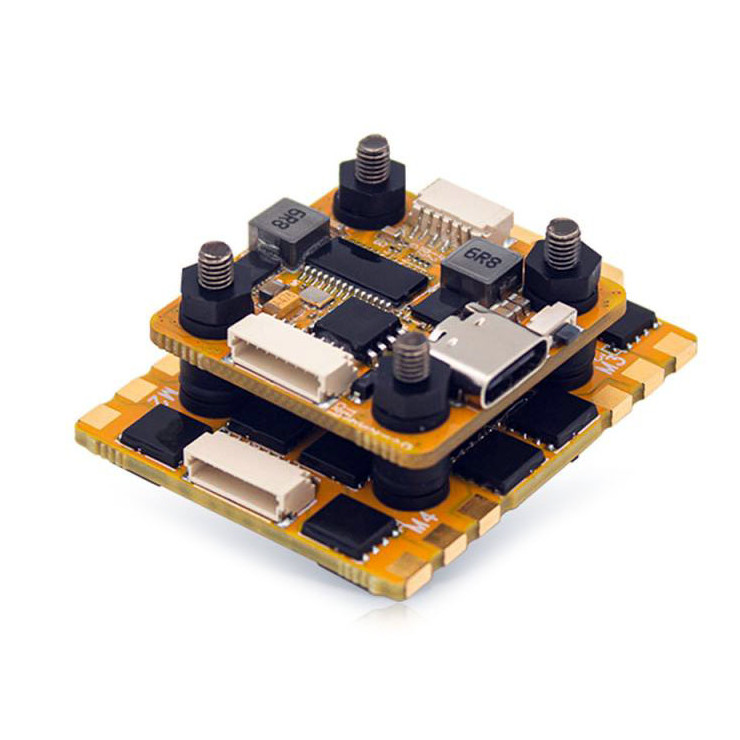

Flycolor Crustcore is a stack created in collaboration with the racing team Speedy Pizza Drones. The stack combines F7 controller and 60A controllers. The stack is especially suitable for high performance racing and freestyle 5" drones. The stack is very nicely made. Both the controller and the regulator are already equipped with a protective waterproof varnish.
The basis of the control unit is F722 processor in combination with the ICM42688P gyro. The board is also equipped with a BMP388 barometer for altitude measurement, 16MB memory for the blackbox and 3.3V, 5V and 9V BEC for powering other devices. There is a connector for connecting controllers and a connector for connecting a digital video transmitter.Solder pads are provided around the perimeter of the board for connecting other peripherals. The board supports up to8 motor outputs.
The stack is complemented by regulators that can handle current up to 60A and 3-6S Lipo power. The controllers use modern AM32 firmware. Current sensor is a matter of course.
Key Features
- Input voltage: 3-6S
- BEC: 3.3V@0.1A, 5V@3A, 9V@1.5A
- MCU: STM32F722
- Gyro: ICM42688P
- Barometer: BMP388
- I2C: Yes
- Mounting holes: 20x20mm M3
- Current sensor: Yes
- ESC firmware: AM32
- Maximum current: 60A
- PWM frequency: up to 128kHz
Package Includes
- 1× ESC
- 1× Flight controller
- 1× FC/ESC Interconnect Cable
- 1× Power Cable with XT60
- 1× Capacitor
- 1× Screw Set
