Diatone Mamba MK4 F405 Mini (MPU6000)

In Stock
€ 45,29

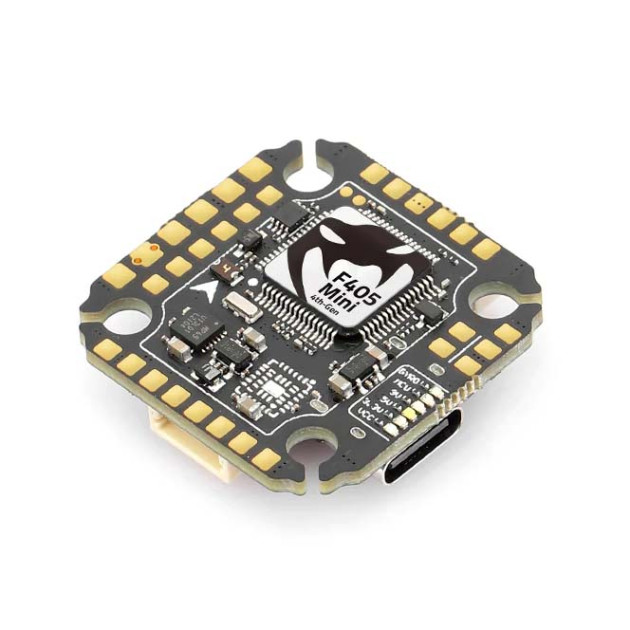

Mamba MK4 F405 Mini is the fourth generation of the fligt controller, whose main advantages are larger solder pads and USB-C connector. It uses the F405 processor and the MPU6000 gyro, which supports a refresh rate of 8kHz. The board also includes 5V and 9V BEC, barometer and 16MB blackbox memory. The board has raised I2C bus pads for compass connection. For protection against voltage spikes, the board has a TVS diode. Connecting the DJI O3's digital video transmission is simple via a connector.

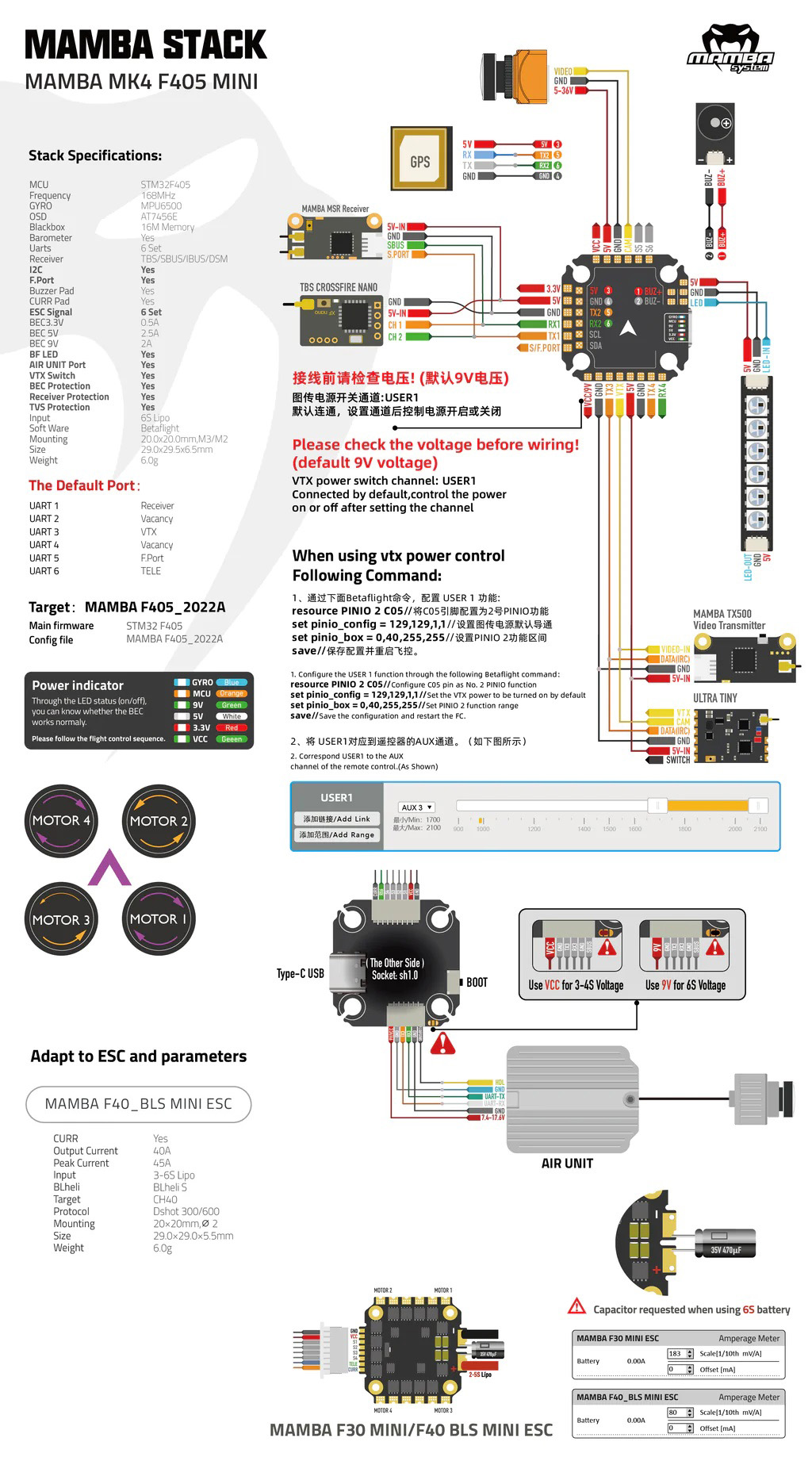

Wiring diagram

Key Features

  • Processor: STM32F405
  • Gyro: MPU6000
  • BF Target: MAMBAF405_2022A
  • Number of UARTs: 6
  • BEC: 3.3V@0.5A, 5V@2.5A, 9V@2A
  • TVS Diode
  • Integrated Barometer
  • Power: 3-6S
  • Mounting Holes: 20x20mm M3/M2
  • Size: 29x29.5x6.5mm
  • Weight: 6g

Package Includes

  • 1x Flight controller
  • 4x Softmount Set (M2/M3)
  • 1x Interconnect Cable Set
