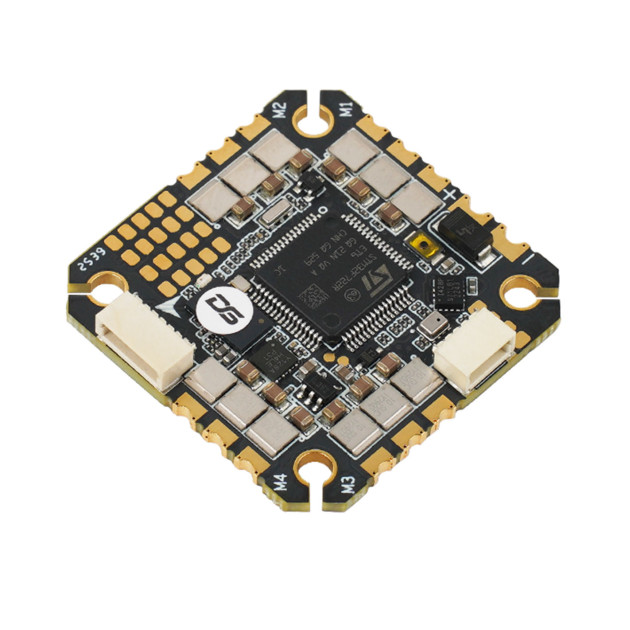

DeepSpace Talos F722 BL32 40A
Deepspace Talos F722 BL32 is a compact AIO board combining a flight controller and regulators. The board is suitable for cinewhoops, 3–4" freestyle drones, and light 5" drones powered by 4–6S LiPo batteries. The board is compatible with both digital and analog video transmission. To save weight, the board uses an external USB-C connector connected via a SH1.0 connector. The USB-C connector can be positioned for easy access.
The core of the flight controller is a F722 microprocessor and an ICM42688P gyroscope. The board also offers 16MB memory for blackbox, an altimeter for measuring altitude, and 5V and 10V BEC to power peripherals. The regulators can handle a current of up to 40A and use BlHeli_32 firmware.
The board is equipped with a 6-pin connector for digital video transmission with adjustable output voltage 5V / VBat. It also includes an OSD chip for analog video.
Firmware updates cannot be done online; you must upload a local firmware file available on the manufacturer's website here or Betaflight 4.5.3 here.
Key Features
- Input voltage: 4–6S LiPo
- BEC: 5V/2A, 10V/2A
- MCU: STM32F722
- Gyro: ICM-42688-P
- Analog OSD: Yes
- Blackbox: 16MB
- Barometer: Yes
- Number of UARTs: 4
- ESC current: 40A
- Betaflight target: DSF722AIO
- ESC firmware: BL32_32.10 48k
- Mounting pitch: 25.5 × 25.5 mm
- Size: 34 × 34 × 6.8 mm
- Weight: 8.7 g
Package Includes
- 1x AIO board
- 1x USB-C connector
- 4x Softmounts
- 1x DJI O4 connector cable
- 1x XT60 connector
- 2x 16AWG cables
- 1x Capacitor
