Cubepilot CAN BUS Splitter

CubePilot CAN BUS Splitter is a passive distribution board for CAN (or optionally I2C) bus, designed for neatly connecting multiple peripherals to the flight controller. It serves to split a single bus into multiple outputs without the need to daisy-chain devices or use additional cable adapters.

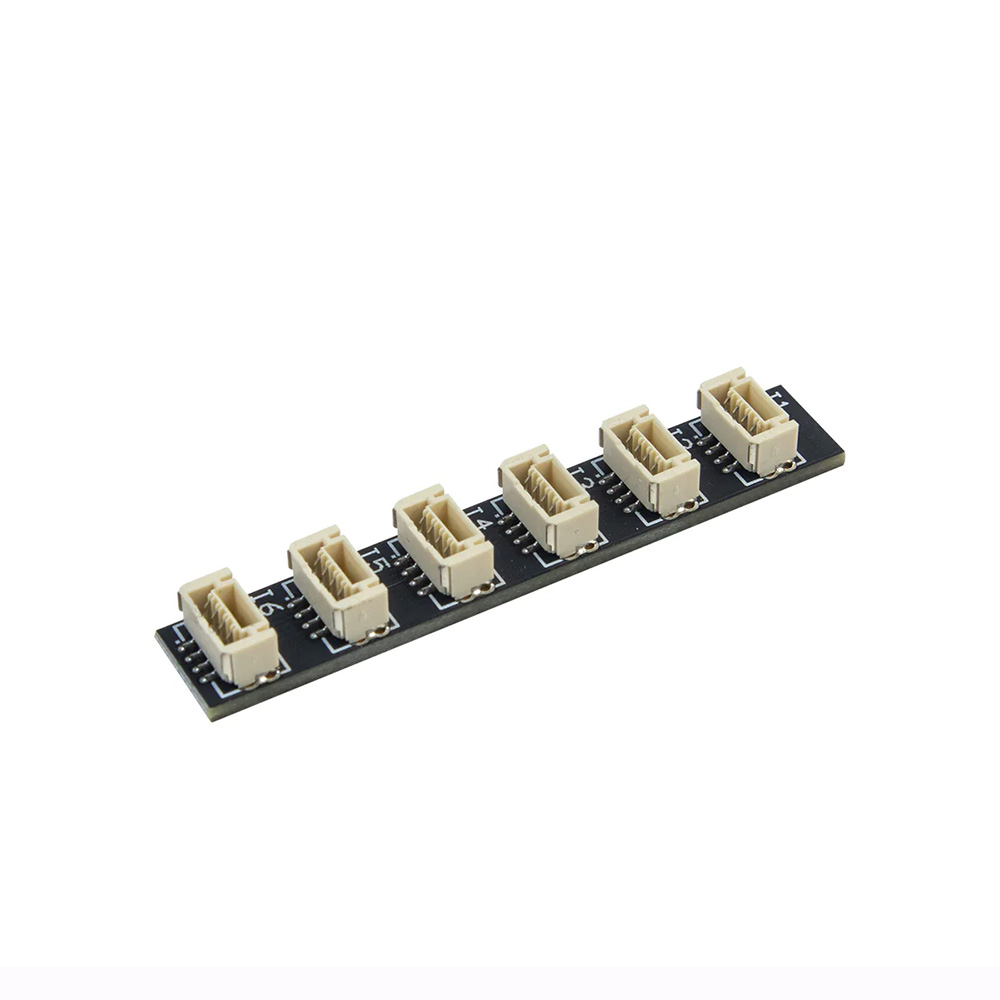

The board is equipped with six 4-pin JST-GH connectors. All ports are wired in parallel, allowing simultaneous connection of multiple sensors and modules, such as GPS, compasses, airspeed sensors, ESCs, or other CAN peripherals.

The splitter contains no active electronics or converters, thus maintaining full compatibility with the standard bus wiring.
