BetaFPV Air75 II Racing - 1S ELRS

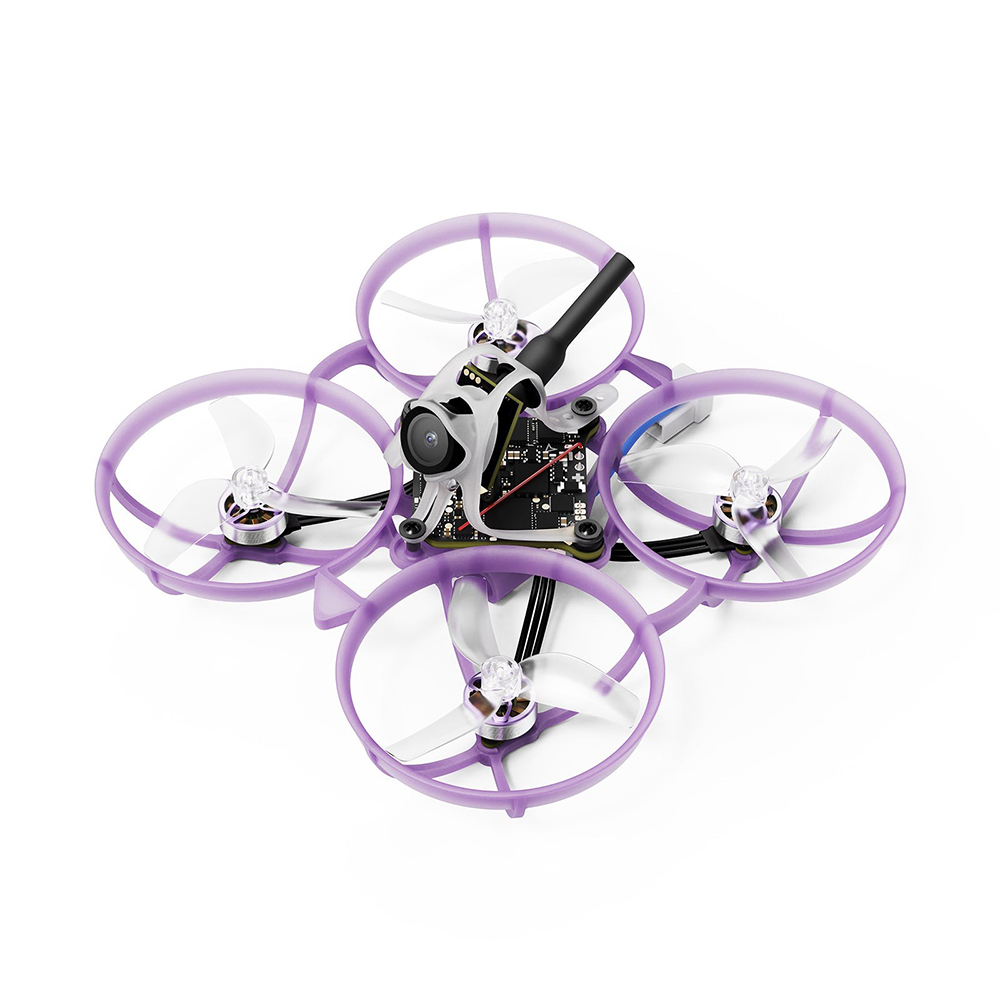

Air75 II is a lightweight 1S Tinywhoop designed for racing and freestyle flying both indoors and outdoors. The drone uses 40mm props and has a motor diagonal distance of 75 mm. With a low weight of around 21 g, it offers very agile behavior and precise control while maintaining flight safety.

The second version features a new AIO board that targets higher durability on crashes. The AIO board Matrix 1S 5v1 II combines the flight controller, ESC, ELRS receiver, and analog video transmitter with an OSD chip into one board. The used processor G473 combined with the gyro ICM42688P provides precise control and smooth response. The integrated video transmitter supports power 25–400 mW and uses the SmartAudio protocol for easy setup. The drone is equipped with a C03 camera with 1200 TVL resolution, 160° field of view, and 4:3 aspect ratio. Camera protection is provided by a flexible Air Canopy with an adjustable angle of 25–50°. The integrated ELRS receiver operates on 2.4 GHz and uses a wired antenna.

The motors used BETAFPV 0802 25000KV combined with Gemfan 1614 3-B props provide enough power for dynamic and precise maneuvers. The Air75 frame is a lightweight version of the Meteor75 frame and weighs only 4 grams.

Air75 II is an ideal choice for experienced pilots seeking a lightweight and powerful drone for agile flying.

LiPo batteries fit into a frame space of 16.7×6.3 mm. The drone is equipped with a BT2.0 connector.

Recommended are 1S LiPo batteries with a capacity of around 450mAh. Batteries are not included.

CLI and firmware
