AlfaRC Apex 3

In Stock
€ 19,59

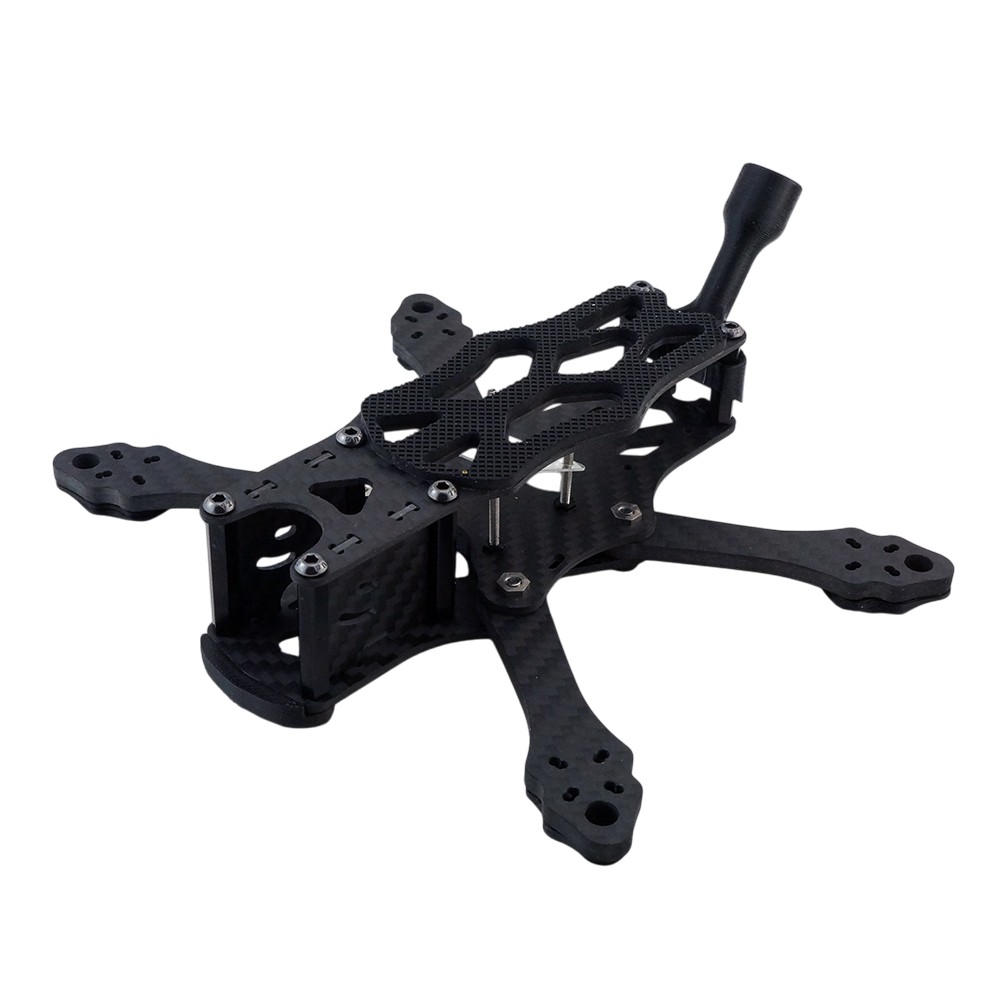

Apex 3 is a small frame for building a 3" freestyle drone. The frame uses arms made of 4mm thick carbon, which makes it very durable. The frame is designed for Micro (19mm) size cameras. There is space for a stack with 20x20mm M2 holes in the middle part. In the rear part of the frame there are additional mounting holes with spacing 20x20mm M2 suitable for placing a video transmitter. The frame can accommodate motors with both 9 and 12mm M2 mounting holes.

Key Features

  • Diagonal distance of motors: 147mm
  • Weight: 61g
  • Mounting holes for stack: 20x20mm M2
  • Mounting holes for VTX: 20x20mm M2
  • Mounting holes for motors: 9mm / 12mm M2
  • Arm thickness: 4mm
  • Top plate: 1.5mm
  • Bottom plate: 2mm
  • Camera size: Micro (19mm)

Package Includes

  • 1x Frame
