Matek Power Module 12S

Matek Power Module 12S is a powerful module with three independent BECs. The Power Module is suitable for powering larger Cinelifters or larger airplane models. The Power module can be powered with voltages in the range of 9-55V (3-12S). The first BEC provides 5V/4A (6A peak). The 5V BEC is suitable for powering the flight controller, camera, receiver, GPS, GoPro camera and other accessories. The second 12V BEC is capable of providing 4A current (6A peak). It is suitable for powering a video transmitter or gimbal. The third BEC has adjustable voltage to 5.25, 6 or 8V and will provide current up to 15A (25A peak). This makes it suitable for powering servos or bigger cinema cameras. All BECs are protected with thermal shutdown.

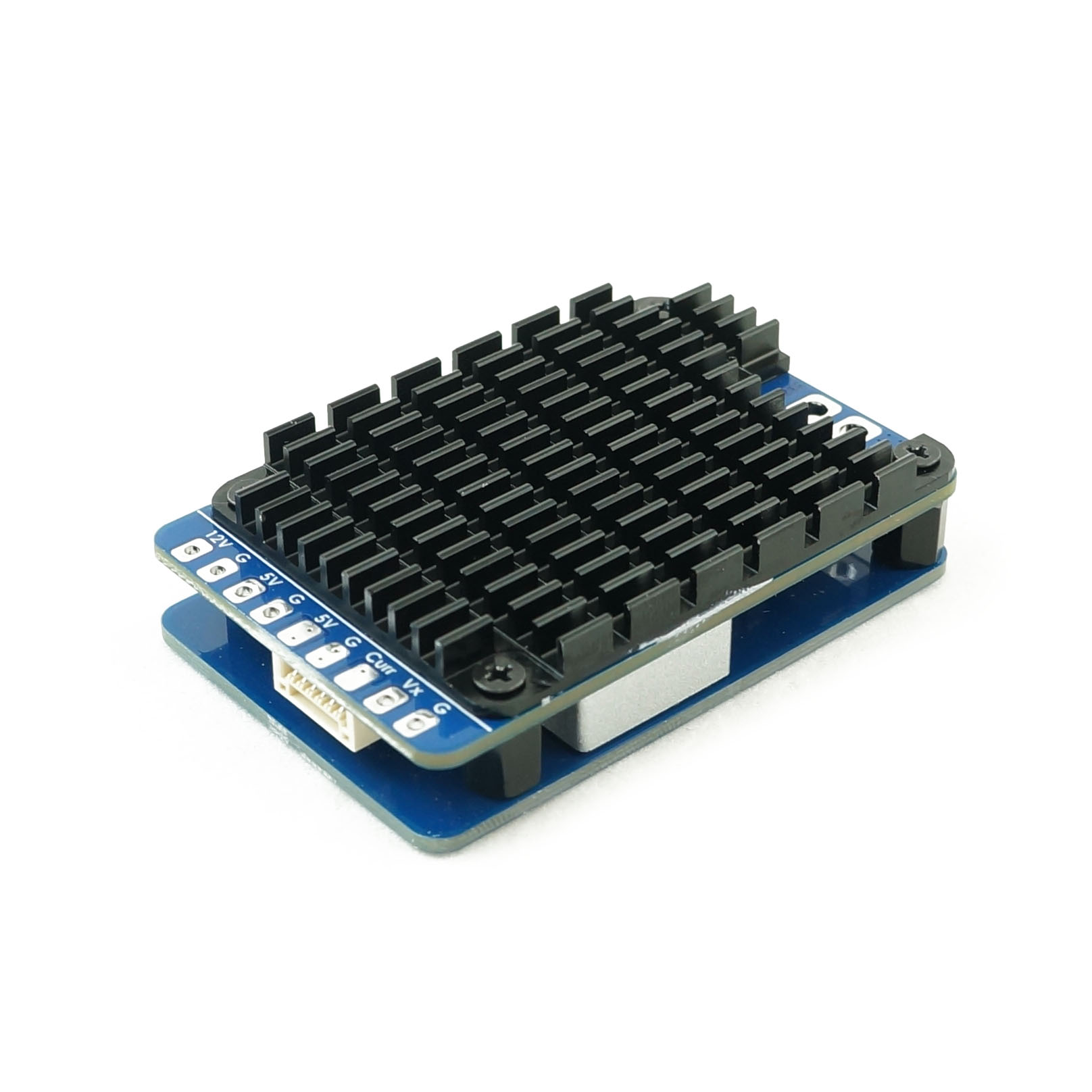

The Power Module is all on one board. A second bottom plate is available for ease of installation. The entire power module is cooled by an aluminum heatsink. The XT30 connector can be soldered directly to the power input. The power module includes a 1/21 voltage divider, which allows conventional flight controllers and receivers to sense higher voltages.
